Confirmed Presence Of An Ultra-Heavy Excavator In The Country Calls Attention Due To Size, Catalog Numbers, And Potential Impact On Productivity Of Open-Pit Mines, At A Time When Scale, Loading Rate, And Logistical Integration Become Decisive Factors For Large Mining Operations.
An ultra-heavy mining excavator from the XCMG line has been announced as already present in Brazil, information that quickly caught the attention of the sector.
The highlight comes not only from the institutional announcement but mainly from the size and the numbers associated with the equipment.

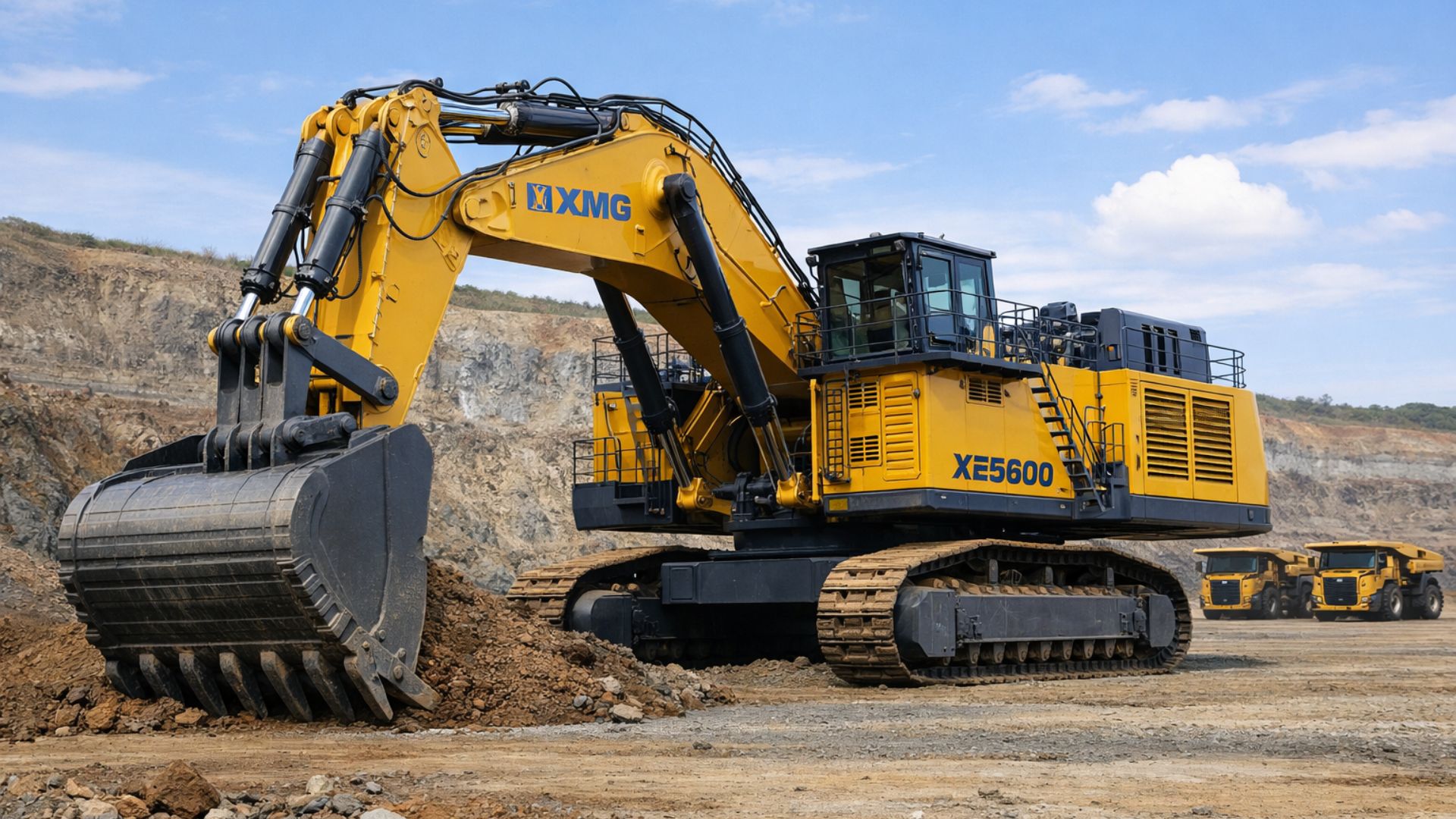

This is the XE5600, a model developed for open-pit mining operations and high-effort continuous applications.
-
He started running at 66 years old, broke records at 82, and is now a subject of study for having a metabolic age comparable to that of a 20-year-old, in a case that is intriguing scientists and inspiring the world.
-
Oldest tree on the planet reappears after 130 years of searches: Wattieza, 385 million years old, was 10 meters tall and had no leaves or seeds; Gilboa fossils in New York solved the mystery in 2007.
-
A 48-square-meter house assembled in hours with 4,000 bricks made of recycled plastic that does not absorb moisture, has natural thermal insulation, and costs less than 90,000 reais in a complete kit.
-
Luciano Hang revealed that Havan’s air fleet has already accumulated more than 20,000 landings, 10,000 flight hours, and 6 million kilometers traveled, and he says that without the planes, the company would never have grown so quickly.
According to specifications published by the manufacturer itself, the machine has a operating weight of 569,700 kg and a bucket capacity of 34 m³, dimensions that place it in the upper range of mining excavators.
Arrival In Brazil And Institutional Communication
The public confirmation of the presence of the XE5600 in the country appeared in an institutional publication from XCMG Brazil.
In this material, the company reinforced the main capacity and weight data of the equipment, aligning communication with the technical numbers disclosed globally.
At the same time, video content related to the product’s promotion also mentioned the assembly of the machine in national territory.
In these publications, the operation in Carajás was cited as a reference for the assembly location, without additional details about the operational stage.
Technical Specifications That Define The Equipment Category
In the technical sheet released on the official XCMG channel, the XE5600 is equipped with a 2×1119 kW engine at 1800 rpm, a configuration aimed at sustaining simultaneous efforts in digging, rotation, and movement.
In addition to power, the manufacturer provides force indicators used to gauge performance under heavy load.
Among these parameters are bucket digging force of 1500 kN, arm digging force of 1325 kN, and maximum traction force of 2328 kN, numbers associated with the ability to tackle more resilient materials.
Working Envelope And Operational Limits
The set of specifications also includes parameters for reach and excavation height, which help define the working envelope of the equipment.
According to the technical sheet, the model achieves a maximum digging radius of 20,200 mm and maximum excavation height of 19,700 mm.
In open-pit operations, these limits influence the positioning of the machine in front of the bench and the compatibility with different loading arrangements.
They also impact the interaction with off-road trucks, especially regarding loading height and the geometry of the working face.
Importance Of The 34 M³ Bucket In Loading
Among the most watched data in large excavators, bucket capacity occupies a central position.
This is because the volume per cycle is directly related to the time necessary to fill trucks in open-pit mining.
The larger the amount of material moved per pass, the lower tends to be the number of cycles, provided the set operates stably.
Still, nominal volume alone does not define productivity.
In practice, factors such as cycle regularity, rotation control, and stability during material engagement weigh in.
Operating Weight And Forces As Indicators Of Robustness
In machines operating in the hundreds of tons range, operating weight goes beyond a simple catalog number.
It relates to stability, safety, and control of digging effort, especially when the arm is extended with a loaded bucket.
In this context, digging and traction forces act as indicators of the equipment’s endurance for intense cycles.
The combination of 569,700 kg, 1500 kN in the bucket, and 2328 kN of traction positions the XE5600 as an excavator aimed at large-scale mining.
Assembly In Brazil And Operational Stage
The institutional communication from XCMG in Brazil stated that the XE5600 is already on national soil.
In the publications, the highlights for 569 tons and the 34 m³ bucket reappeared.
In a video associated with the product promotion, the company declared it has completed the assembly of the machine in the country.
In the same content, the excavator was described as the largest model of mining of the brand in operation in Brazil.
Other materials released on social media mention the assembly in Carajás.
These publications, however, do not detail which specific mine or what operational phase the equipment began to operate.
From Visual Impact To Integration With Operation
The size of the excavator usually draws immediate attention, turning loading into a visible indicator of scale.
However, operational relevance depends on how well the equipment fits into the mining and transportation planning.
By adopting a machine of this class, the operation begins to treat loading as a central element of the production system.
The excavator feeds the transport fleet, influences the pace of the working face, and conditions the performance of subsequent stages.
Any unplanned downtime, in this context, tends to impact high volumes of material throughout the shift.
In practice, it is the combination of consistent cycle, operational availability, and logistical integration that transforms catalog numbers into daily results.
In an open-pit mining scenario increasingly dependent on high volume and continuous flow, to what extent does the scale gain in giant excavators compensate for the challenges of logistics, maintenance, and operation in day-to-day?
