Modular System with 17 PVC Pipe Columns Stores Up to 3,000 Liters of Water, Costs Less Than R$ 1,200, and Emerges as an Alternative to the Traditional Water Tank of R$ 4,000.
Residential water storage has become a priority in various regions of Brazil, especially where there are interruptions in supply or interest in rainwater reuse. Conventional large-capacity water tanks can easily exceed R$ 4,000, depending on the model, material, and installation. In light of this scenario, a technical alternative has gained attention: the vertical modular reservoir made with DN 200 PVC pipes, interconnected in columns. The concept is simple but requires precise calculations to ensure the numbers are accurate.

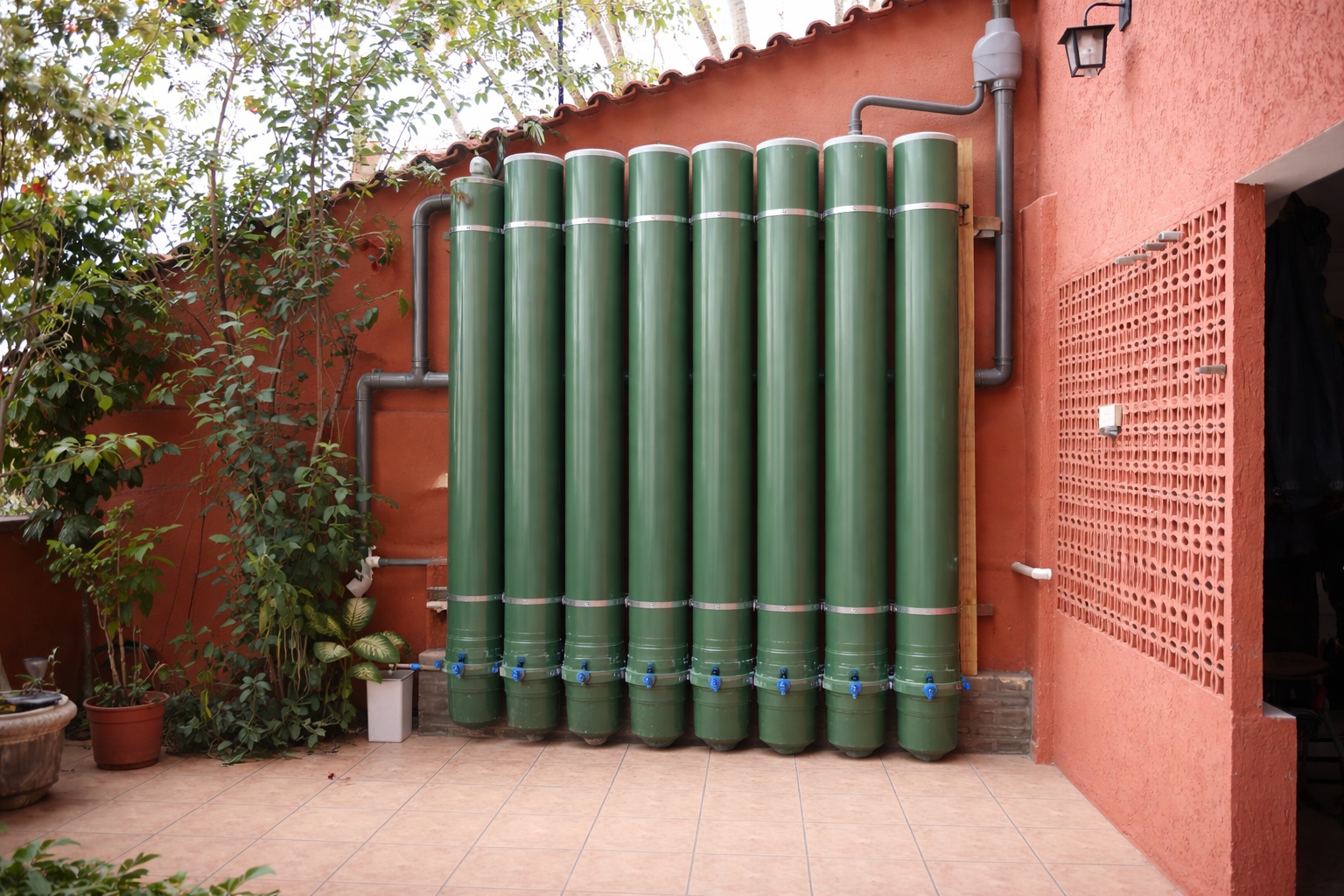

In this specific case, the system consists of 17 vertical columns of 6 meters each, reaching an approximate capacity of 3,000 liters of total storage.
Technical Calculation: How Many Liters Fit in a 200 mm PVC Pipe?
To understand how the system achieves 3,000 liters, it is necessary to start with the basic math of the volume of a cylinder. The DN 200 pipe has an approximate internal diameter of 192 to 194 mm, depending on the manufacturer. Considering the technical average, each linear meter stores about 29 to 31 liters of water.
-
Architects are burying plastic pipes 2 meters deep and using ducts up to 30 meters long to cool homes without electricity, with low-consumption fans and natural heat exchange that drastically cuts the electricity bill.
-
Under São Paulo, Line 6-Orange reaches 15.3 km and 15 stations, promising 23 minutes from Brasilândia to the Center and 633,000 passengers per day; with autonomous trains, it will open a partial section in October 2026.
-
Created by George Lucas with over $1 billion, a futuristic museum in the shape of a spaceship with 1,500 curved panels is about to open in Los Angeles and will house one of the largest private collections of narrative art in the world.
-
Couple shows how they built a retaining wall on their property using 400 old tires: sloped land turned into plateaus, tires are aligned, filled, and compacted with layers of soil, with grass helping in support and at almost zero cost.
In a standard 6-meter bar:
- 6 m x ~30 L/m ≈ 180 liters per column
Multiplying by 17 columns:
- 17 x 180 L ≈ 3,060 liters
The final volume slightly exceeds 3,000 liters, maintaining operational safety margin. This calculation eliminates any distortion or exaggeration regarding the system’s capacity.
3,000 Liter Modular Reservoir with PVC: How the System Works
The principle of the vertical modular reservoir with PVC pipes is based on hydraulic interconnection. Each column functions as an independent cylinder, but all are connected by a bottom manifold, allowing the water level to equalize automatically.
The system involves:
- 17 PVC DN 200 pipes, each 6 m long
- PVC T-connections or crosses
- Inlet valve
- Outlet valve
- Sealed top cap
- Sturdy structural base
The lower interconnection ensures that all columns fill and empty simultaneously.
Advantages of the Vertical PVC Modular Reservoir
The modular model has specific characteristics that explain its growing interest:
Utilization of Vertical Space
Unlike wide horizontal tanks, the system occupies a reduced ground area, utilizing height to gain volume.
Future Expansion
If it becomes necessary to increase capacity, just add new interconnected columns.
Structural Resistance of PVC
DN 200 sewage pipes have good resistance to static internal pressure when properly supported.
Structural PVC handles a water column of up to 6 meters well when installed with a suitable base.
Estimated Cost of the 3,000 Liter System
The basic composition includes:
- 17 DN 200 pipes, 6 m long
- Connections and elbows
- Valves
- Covers
- Concrete base or simple metal structure
Prices vary by region, but average estimates indicate that the system can be below R$ 1,200 to R$ 1,500, depending on the reuse of materials and local negotiation.
Even considering price variation, the cost remains lower than that of large capacity rotomolded industrial reservoirs.
Structural Safety in the 6 Meter Vertical Reservoir
An essential technical point is the support of the water column. Each filled pipe exerts increasing pressure at the base. The hydrostatic pressure depends on the height of the liquid column.
For 6 meters of water:
- Approximate pressure of 0.6 bar at the base.
Although not extremely high, it requires:
- Flat and leveled base
- Lateral fastening
- Support against tipping
Structural stability is a mandatory requirement for the system’s safety.
Rainwater Harvesting System with Modular Reservoir
The reservoir can be integrated into a rainwater harvesting system. Water from the roof passes through:
- Leaf filter
- First flush diverter
- Entry into the upper or lateral manifold
The combined use with a filter improves the quality of the stored water.
Technical Comparison with Traditional 3,000 Liter Water Tank
| Feature | Traditional Tank | PVC Modular System |
|---|---|---|
| Format | Horizontal | Vertical Modular |
| Area Occupation | High | Low |
| Expansion | Limited | Modular |
| Transport | Difficult | Segmented |
| Installation | Simple | Requires Plumbing Assembly |
The main difference lies in modularity and adaptation to available space.
Technical Limitations of the System
Despite the advantages, the model has clear limitations:
- Requires careful workmanship
- Needs perfect sealing
- Does not have industrial certification
- May require additional structural reinforcement
In urban areas, municipal regulations may require certified reservoirs.
Most Suitable Applications
The system tends to be more viable in:
- Farms and estates
- Rural areas
- Agricultural warehouses
- Harvesting for irrigation
For human consumption, an additional filtering and treatment system would be necessary.
Why the Model Draws Attention
The factor that attracts the most is the cost-volume relationship. Storing 3,000 liters for less than half the price of a commercial tank generates strong economic appeal.
The modular reservoir with 17 PVC 200 mm pipe columns achieves approximately 3,000 liters based on the actual cylindrical volume calculation.
Moreover, the modularity allows for individual column maintenance without emptying the entire system.
The proposal reduces initial cost, utilizes vertical space, and allows for future expansion, provided it is executed with attention to structural stability and sealing.
The system does not completely replace certified industrial solutions but represents a viable technical alternative for small to medium-scale water storage.
When properly sized and installed with adequate support, the model shows that simple hydraulic solutions can offer great capacity with reduced investment.
