The Leaning Of Front Wheels On Motor Graders Is Not A Mistake: It’s A Technique To Ensure Stability, Control, And Less Wear During Operation.

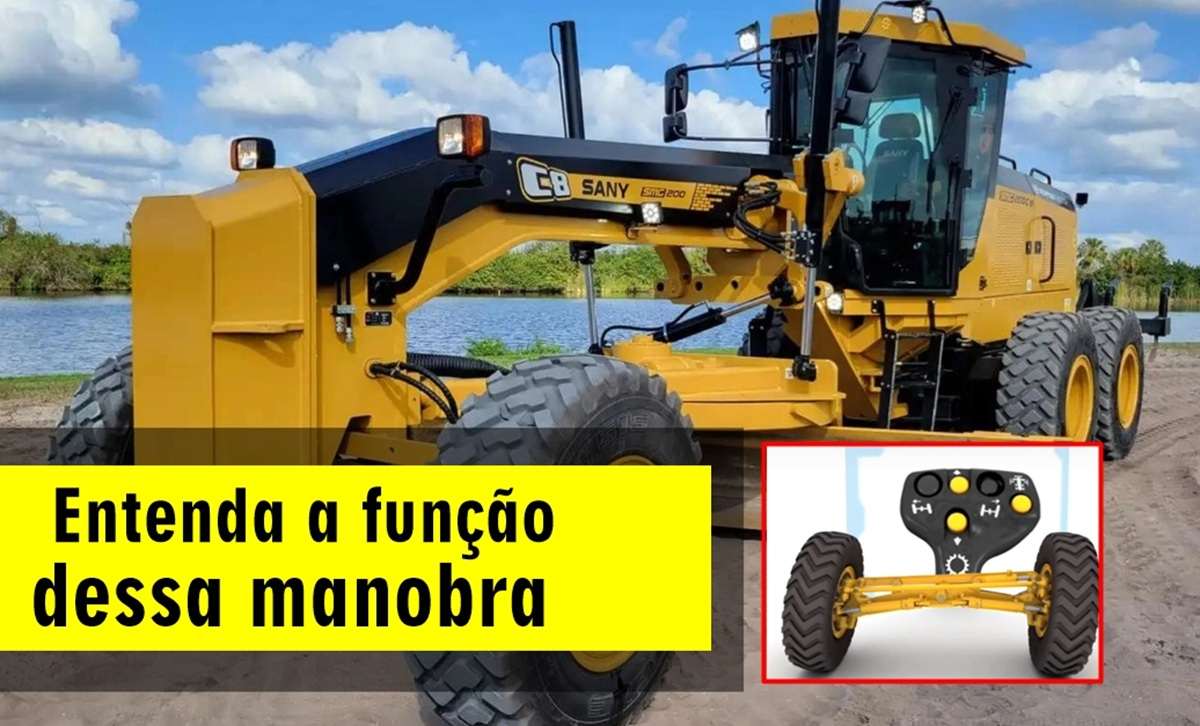

Anyone observing the work of a motor grader may be surprised to see the front wheels tilted to the side. At first glance, it may seem like a defect or some maintenance issue. But that is not the case at all.
The tilt of the wheels is a deliberate maneuver and very important for the machine’s performance on the construction site.
The motor grader is one of the most versatile pieces of heavy equipment. It is used for leveling land, digging ditches, forming slopes, and preparing road bases.
-
From space, Buenos Aires appears as a colossal spot of light surrounded by kilometers of darkness, revealing at a single glance the exact boundary between the metropolis and the countryside, seen from 400 km altitude.
-
NASA spent over 118 million reais to build a single bathroom that works in zero gravity, and it has just gone to space on the first crewed mission to the Moon in more than 50 years.
-
Man never set foot on the Moon? 5 scientific proofs confirm that humanity has been there and definitively dismantle conspiracy theories.
-
The Brazilian Army will adopt humanoid robots to test the concept of future combat, says a website, surprising everyone, but later revealing that it was all just an allusion to April Fool’s Day.
To carry out these tasks with precision, operators rely on some fine adjustments — among them, the famous movement of “laying down” the front wheels.
An Essential Technical Resource
The technical name for this maneuver is front wheel lean, or front wheel lean in English. It is a function available on the cabin controls, and can be adjusted as needed for the job.
This movement is not for aesthetics, nor is it a trick by the operator. It serves very practical and essential roles in the machine’s performance.
Stability Comes First
When the motor grader is cutting or pushing dirt with the blade in a tilted position, lateral forces arise that push the machine to the side.
If the wheels were completely vertical, it would be more difficult to maintain control. The motor grader could skid or slip, especially on sloped terrain, embankments, or sharp curves.
By tilting the wheels in the opposite direction to the force of the blade, the operator gains more traction and stability. This helps to keep the machine’s path straight and steady, even under intense lateral load.
Assisting In Steering
Another benefit of the wheel tilt is making steering control easier. When the motor grader needs to turn in tight areas or work on an irregular path, tilting the wheels helps direct the machine more smoothly.
It’s almost like adjusting the center of gravity in real time.
This maneuver also compensates for any irregularities in the terrain, such as holes, rocks, or unevenness. With the wheels tilted, the machine absorbs impacts better and distributes weight more evenly.
Less Wear On Tires
The tilt of the wheels also has an economic function: reducing wear on the front tires. In demanding operations, the wheels endure a lot of lateral pressure. This accelerates rubber wear and can cause premature damage.
With the adjustment of the tilt, the tire surface comes into contact with the ground more completely and evenly. This prolongs the lifespan of tires and reduces maintenance costs.
Adjustments During Operation
The operator can make these adjustments from inside the cabin while working. Most modern motor grader models have hydraulic controls that allow tilting the wheels left or right in just a few seconds.
The choice of tilt depends on the blade position, soil type, direction of operation, and the operator’s experience.
In many cases, the adjustment is made by instinct based on the feel of traction and control during the job.
A Precise Machine
The wheel tilt is just one of many features that make the motor grader a high-precision machine. It may look simple on the outside, but it requires technique and attention from the operator to function well.
Understanding why the wheels “lean” is a way to further appreciate the work of these professionals and the operation of the machines that shape roads, neighborhoods, and large construction projects.
This discreet maneuver makes all the difference — both in safety and operational efficiency.
-
-
