Engineers Triumph Over Physics, See the Fascinating Journey to Stabilize the Iconic Leaning Tower of Pisa, Combining Technical Innovation with Historical Preservation.

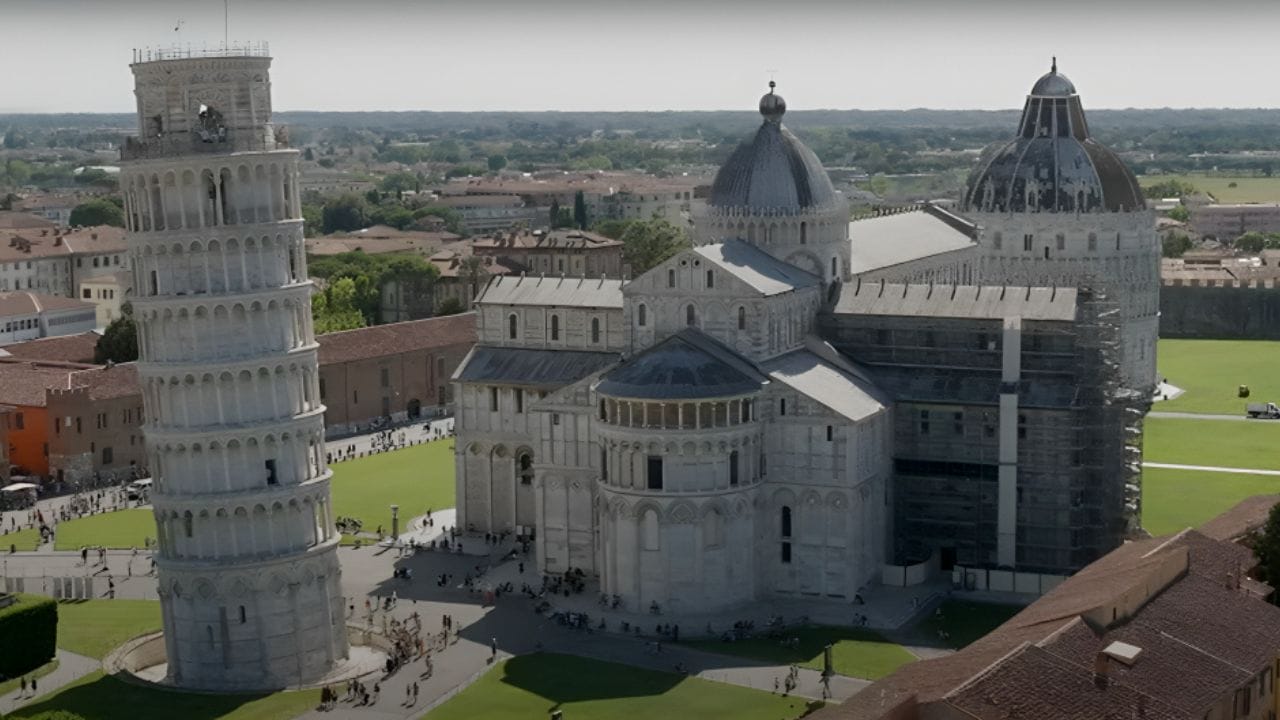

The historic Leaning Tower of Pisa, famous for its intriguing lean, had its fate transformed thanks to the ingenuity and precision of dedicated engineers. For centuries, this iconic structure continued to lean dangerously, culminating in a closure to the public in 1990, when the fear of an imminent collapse was immense. The Italian government, in an attempt to save the tower, called upon a team of engineers, architects, and historical restoration experts to develop a rescue plan.
The complexity of the challenge lay not only in the need to stabilize the tower but also in preserving its historical appearance, including the characteristic lean. The committee began its work with an extensive characterization of the situation, employing everything from soil tests to computational models, to fully understand the conditions and risks involved. The analysis indicated that the tower was extremely close to collapse, with a safety factor estimated at just 1.07.
Well-Devised Steps for the Realization of a Certain Plan Without Damaging the Structure
The first step of the action plan involved temporary measures, including the construction of a concrete ring around the base of the tower and the addition of about 600 tons of lead ingots on the north side, acting as a counterweight. Although visually unappealing, these measures proved effective, successfully reducing the lean for the first time in history.
-
Created by George Lucas with over $1 billion, a futuristic museum in the shape of a spaceship with 1,500 curved panels is about to open in Los Angeles and will house one of the largest private collections of narrative art in the world.
-
Couple shows how they built a retaining wall on their property using 400 old tires: sloped land turned into plateaus, tires are aligned, filled, and compacted with layers of soil, with grass helping in support and at almost zero cost.
-
Engineer explains drainage during the rainy season: the difference between surface water and deep water, ditches, gutters, and water outlets on the road, as well as drains and drainage mattresses, to prevent erosion, aquaplaning, and flooding at the construction site today.
-
With 55 floors, 177 meters in height, a 15-meter walkway between the twin towers, ventilated facade, and 6,300 m² of leisure space, Ápice Towers already has one tower completed and another nearly at the top.
However, the search for a permanent solution led the team to explore various options, including the removal of soil beneath the tower, a method known as “under-excavation”. This technique involved carefully removing soil through inclined drilling, with precise control to correct the lean. A safeguard system with cables was installed to prevent unwanted movements during the process.
After successful tests and meticulous adjustments, the under-excavation was applied to the tower in 1999, with promising results. Over the course of a year, 38 cubic meters of soil were removed, resulting in a reduction of the tower’s lean by about half a degree. This achievement reverted the state of lean to what it was in the early 1800s, significantly decreasing the risk of collapse.
The engineers, such as Michele Jamiolkowski, at the end of the project, decided not to completely straighten the tower, maintaining its iconic lean as an integral part of its historical character. The intervention of the engineering team at the Leaning Tower of Pisa is a testament to human skill in combining practical engineering with historical preservation, ensuring this architectural wonder continues to fascinate future generations.
