Modular Construction in Precast Concrete Transfers Stages of the Work to the Factory, Uses High Precision Parts, and Depends on Strict Logistical Planning to Accelerate Deadlines, Reduce Execution Variability, and Standardize Structural Assembly on Site.

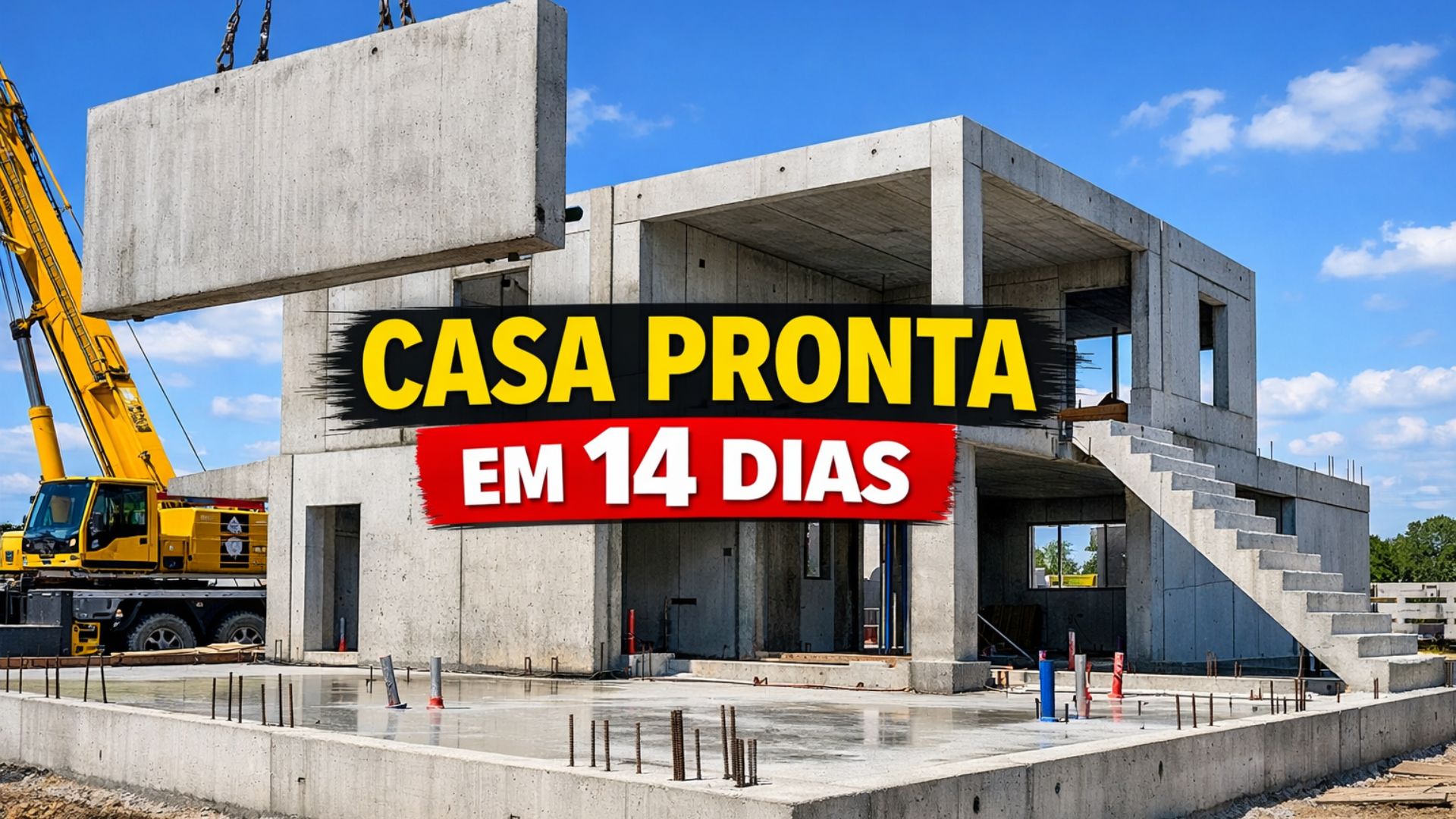

A house assembled in about two weeks, from precast concrete parts manufactured off-site and brought ready for installation, has attracted attention for exemplifying a construction model based on industrialization.
The method uses panels, slabs, beams, stairs, and foundation elements produced in a factory environment and assembled on-site with the help of cranes, following a design that predicts high precision fittings and less dependence on manual labor stages on-site.
The logic of the system is to transfer to the factory activities that, in conventional construction, occur on-site, such as the making of molds, part of the reinforcement, and the initial curing of concrete.
-
In Sweden, a 51-meter tower was built almost entirely of wood, without a concrete structural core and with solar panels integrated into the facade, using CLT and laminated beams to challenge the dominance of steel and concrete in modern buildings.
-
The section of Serra da Rocinha on BR-285 is now open in Timbé do Sul: 50 m tensioned curtains and top-down technique stabilize the slope, with a stairway duct controlling the water.
-
Scientists use sawdust mixed with clay to create a lighter brick, promising efficient thermal insulation and impressing by transforming waste into a solution for construction.
-
With a DNA shape, this bridge in Singapore draws attention in modern architecture and surprises tourists by transforming a simple crossing into an unforgettable visual experience in the urban heart.
According to professionals in the civil engineering field, this centralization tends to reduce execution variations, provided that planning and logistics are compatible with the adopted method.
Structural Design Defines Production of Precast Concrete
The process begins with the development of the structural and production design.
From it, technicians define the dimensions and characteristics of each element, such as panels, beams, slabs, stairs, and foundation blocks, as well as the connection points between the parts and the necessary reserves for installations.
With these definitions, the metal molds are prepared for the serial production of the components.
The intention is to maintain reduced tolerances, as the system depends on the correct alignment at the time of assembly.
Any deviation may require adjustments on-site, which interferes with the planned schedule.
The steel reinforcements are assembled according to the structural calculations and positioned inside the molds according to the specified cover in the design.
At this stage, lifting devices are also installed, embedded in the concrete, allowing the safe transport and placement of the parts with a crane.
High-Strength Concrete Goes Through Industrial Control
The concrete used in precast elements follows defined mixes to resist not only the usage loads but also the stages of demolding, transport, and assembly.
After pouring into the molds, the material is compacted with vibrators, a procedure adopted to reduce internal voids and ensure greater homogeneity.
Curing takes place in a controlled environment, monitored for temperature and humidity.
This process accelerates the gain in initial strength and seeks to standardize the performance of the pieces.
Once this phase is completed, the elements are demolded and moved with specialized equipment, being stored until sent to the site according to the assembly sequence.
Site Preparation Influences Assembly of the Modular House
On-site, the work begins with excavation, soil leveling, and moisture protection measures, as specified in the design.
In some solutions, an initial layer of concrete is applied to create a leveled base before the installation of the precast foundation elements.
Base plates and beams are positioned with the help of cranes and metal alignment guides.
The union between these pieces may use concretes or low shrinkage mortars, designed to ensure proper contact and force transmission.
In certain systems, materials such as technical foams are employed merely as provisional containment, replacing traditional molds, provided this is detailed in the executive design.
After the foundation installation, plumbing is positioned, backfilling is performed, and insulation layers are applied when specified.
Some projects include EPS in specific points, aimed at contributing to thermal performance and moisture control, always conditioned to the adopted technical specifications.
Structure Assembly Occurs in Successive Steps
With the base completed, the structure assembly begins.
Pillars and beams are lifted and fixed according to the order defined in the design, with constant verification of plumb and level.
The precast slabs, in some cases of the halfway slab type, receive additional reinforcements and an extra layer of concrete on-site to form the definitive structural assembly.
Precast stairs follow the same principle.
Produced in a factory, they arrive ready for installation, reducing the need for molds and curing steps on-site.
Fixing occurs at the planned points, respecting the specified structural connections.
The joints between the elements receive suitable filling materials, such as mortars or grouts, applied manually or by injection, according to the construction detail.
This stage is essential to ensure the structural continuity predicted in the calculations.
Internal Organization and Use After the Work
With the structure concentrated in pillars and beams, the internal walls tend not to serve a structural function.
According to engineers who work with industrialized systems, this characteristic allows for greater flexibility in organizing spaces, provided that the limitations imposed by installations and the architectural design are respected.
Another point frequently associated with the method is the predictability of the schedule.
By reducing steps sensitive to weather conditions on-site, some of the risks of delay can be mitigated, although factors such as transport, access to the site, and availability of equipment continue to influence the progress of the work.
The repetition of components also appears as a relevant characteristic in serial developments, such as housing complexes or public buildings.
Still, experts emphasize that the system’s performance depends on project compatibility, quality control, and rigorous execution, especially in the initial phases of implementation.
Without attributing automatic results to the method, modular construction in concrete is part of a broader movement towards industrialization in the sector.
By transferring stages to the factory, the model seeks greater control over the process but maintains the need for detailed planning and efficient logistics.
In this context, to what extent is the reduction of the timeframe linked to the construction system itself and to what extent does it depend on the organization of the work?
-
-
-
-
-
-
