Revealed at EICMA in Milan, the MV Agusta concept bets on an unprecedented five-cylinder engine with compact architecture, up to 240 hp, a rev of 16,000 rpm, and the promise of future application in several segments
MV Agusta presented a five-cylinder engine concept with up to 240 hp at the beginning of November at EICMA in Milan, proposing new compact architecture and signaling future application in high-performance models.
Concept Presented and Context of Revelation
Motorcycle engineering took a new direction when the Italian manufacturer showcased a radical concept, breaking away from usual configurations adopted by high-performance motorcycles, which traditionally rely on established family arrangements.
The proposal presented at the international show highlighted an unprecedented engine, described as a bold alternative for future models of the brand, prioritizing structural innovation without reverting to previous project revisions.
-
Brazil went to China to seek money and technology to reinvent TV and bring the internet to places where fiber does not reach. The mission negotiated with the BRICS Bank led by Dilma and paved the way for a Chinese rival of Starlink to connect the Amazon.
-
Iceland is going to lower a drill five kilometers to reach rock at 400 degrees and try to extract clean energy on a scale that a common well cannot achieve.
-
At the bottom of the South Pole ice, the IceCube observatory drilled more than a kilometer and a half of ice to hunt ghost particles and test whether gravity obeys the rules of quantum physics.
-
While the United States and China compete over giant rockets and lunar bases, India made a “spaceplane” land on its own at over 320 km/h after being released by a helicopter at an altitude of 4.5 km; Pushpak shows that New Delhi also wants to enter the era of reusable space vehicles.
Rare Five-Cylinder Architecture
Five-cylinder engines are virtually absent in modern motorcycles, mainly due to size, weight, and packaging limitations, factors that have historically kept this format out of production lines.
Unlike a straight five-cylinder or a staggered V, the concept adopts a trapezoidal configuration, with two cylinders positioned above three others, forming a compact unit.
This solution allows for a narrow and short engine, directly addressing one of the biggest challenges in motorcycle design, related to the integration of the powertrain with the chassis.
According to the company, the layout results in a width lower than that of a conventional inline four-cylinder and a length shorter than a V4, favoring maneuverability and mass centralization.
The engine uses two separate crankshafts, with three cylinders in front and two at the back, working together as a single system, a solution that reinforces the originality of the project.
Performance and Declared Numbers
In addition to the uncommon architecture, the engine features specifications that place it in the superbike territory, with potential displacements between 850 cc and 1150 cc.
In the most extreme configuration, the engine reaches up to 240 horsepower and 99.5 lb-ft of torque at 8,500 rpm, numbers that rival top models.
The ability to rev to 16,000 rpm is striking, a range generally associated with high-performance four-cylinder engines, reinforcing the sporty nature of the concept.
Even with these characteristics, the complete unit weighs less than 60 kg, helping to keep the total weight of the motorcycle in check and expanding application possibilities.
Internal Balance and Efficiency of the System

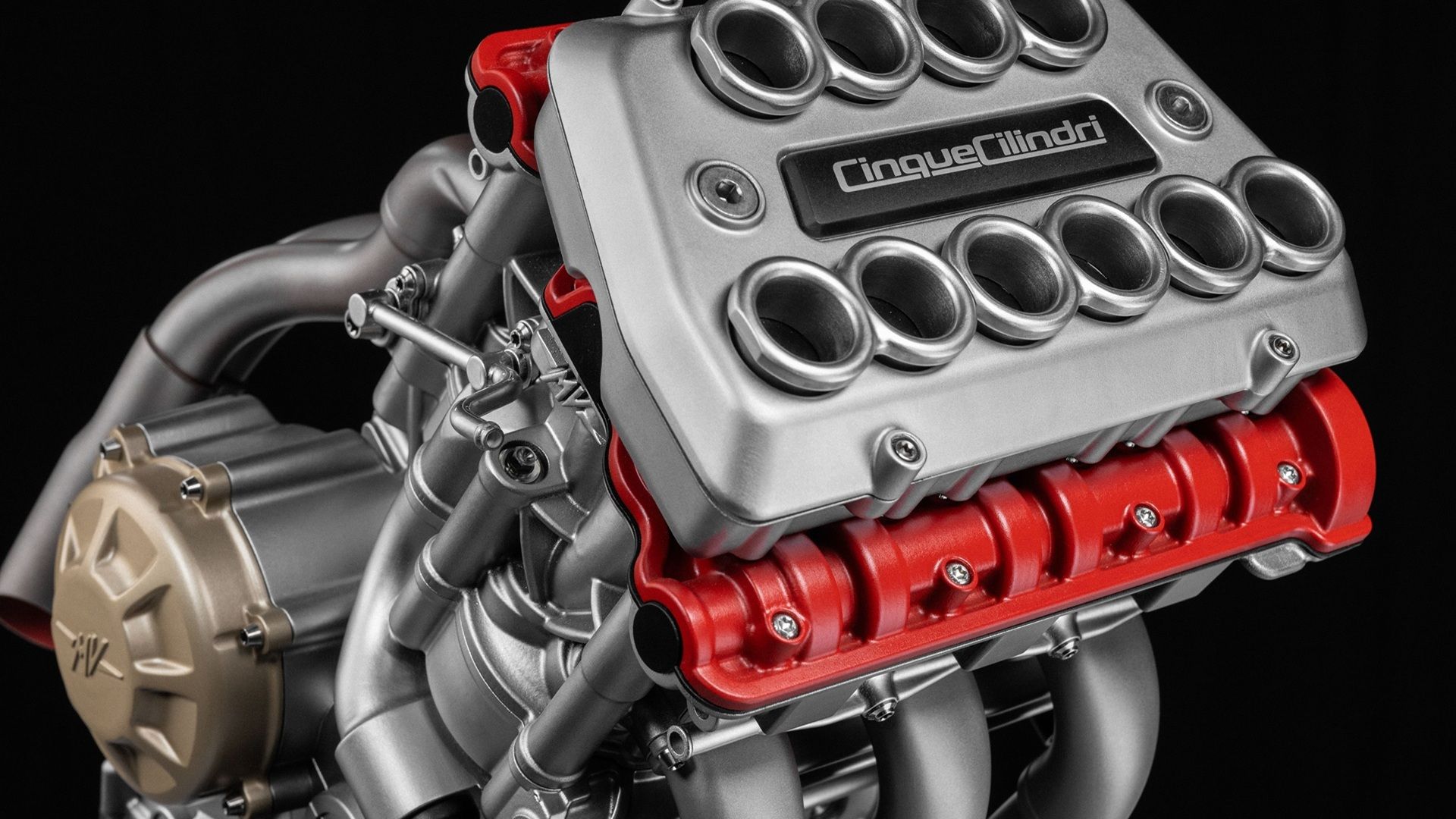

Named Cinque Cilindri, the engine’s personality was shaped by a focus on ignition order and internal balance, aspects treated as central by the engineering team.
The manufacturer claims that the configuration ensures strong and linear torque without the need for variable valve opening, simplifying the design without compromising performance.
The concept draws inspiration from vintage inline four-cylinder engines but adds a fifth cylinder to create a completely new and functional architecture.
The priority was to combine compact dimensions with smooth power delivery, seeking balance between excitement at high revs and usable performance in still relevant mid-range conditions.
Path to Production and Expected Applications
Although presented as a concept, the five-cylinder engine has already been indicated as the right path to production, according to the Italian motorcycle manufacturer.
The company confirmed that the system will equip a new model highly anticipated, with a presentation scheduled for the coming years, without detailing dates or final specifications.
The exact type of motorcycle that will debut the engine has not been revealed, but the design has been described as flexible to cater to Supersport, Naked, and Touring segments.
This versatility suggests that the concept could unfold into different platforms, maintaining the focus on high performance combined with compact and efficient engineering solutions.
