Monumental Structure Combines Large Volumes of Steel and Concrete with Engineering Solutions Developed to Operate in an Environment of Intense Winds, Extreme Cold, and Strong Thermal Variation in One of the Most Challenging Regions of Russian Territory.

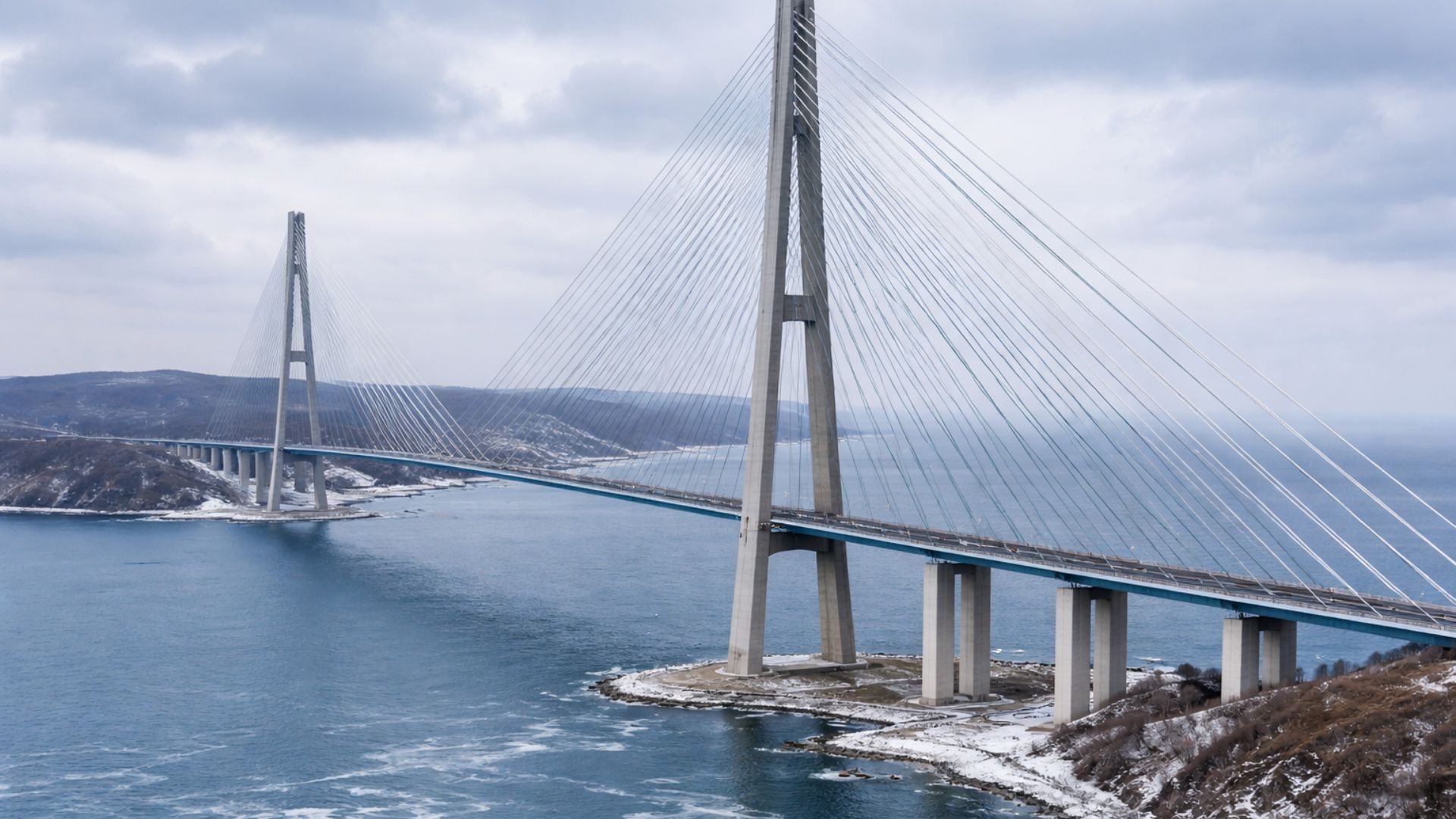

The Russky Bridge, located in Vladivostok in the far east of Russia, was designed to connect Russky Island to the mainland via the Eastern Bosphorus Strait.
Widely publicized technical data indicate that the main span deck concentrates 22,567 tons of structural steel, while the two reinforced concrete pylons reach a height of 320.9 meters.
The structure was designed to operate under winds of up to 36 m/s and within a thermal range reported between -40 °C and 40 °C, in a region marked by severe weather conditions throughout the year.
-
A man takes a simple farm cattle trough and transforms it into a fully motorized boat by lining the tank with plywood, sealing everything with epoxy, and installing an outboard motor.
-
In just 24 days, China erected 7,733 foldable houses alongside nearly 10,000 tents and sheltered over 47,000 residents in one of the highest and most inhospitable regions on the planet, in what is considered the fastest housing deployment in history.
-
With an eye on consumers from Santa Catarina, Paraná, Rio Grande do Sul, and Argentina, Havan is launching a mega store worth R$ 90 million on the side of a busy highway, in an investment that Luciano Hang classifies as one of the most important in the expansion.
-
Thousands of houses in Brazil have slabs and pillars concreted with construction site mixers, and most owners are unaware that, without strict control of the dosage, this can compromise the structure’s strength and create risks that only appear years later, according to engineers and technical standards.
Type of Bridge and Structural Dimensions
It is a cable-stayed bridge, with two main pylons and a cable system supporting the deck by tension.
The central span measures 1,104 meters, a value recorded in technical documents and often cited in specialized publications as one of the largest ever adopted in this type of structural solution at the time of its construction.
The bridge has four traffic lanes and allows navigation beneath the deck, with a noted vertical clearance of 70 meters over the main channel.
Engineering Choices and Intensive Use of Materials
The quantities of material are directly associated with the engineering choices made in the design.
According to available technical literature, the intensive use of steel in the main deck is related to the need to reduce the self-weight of the structure and enable modular construction, a common method in long-span bridges.
The reinforced concrete pylons, with “A” shaped geometry, were designed to provide global stiffness and to receive the forces transmitted by the cables, which concentrate permanent and variable loads.
Cable System and Structural Control
The cable system is one of the central elements of the bridge.
Public information indicates the existence of 168 cables, with lengths varying between 135.77 meters and 579.83 meters.
Cables of this size require special attention to dynamic effects, such as wind-induced vibrations and tension variations associated with thermal expansion.
For this reason, technical reports mention the adoption of protection and damping devices, as well as material specifications aimed at durability in aggressive environments.
Extreme Climate as a Design Premise
The climatic conditions of the region were treated as design premises from the early phases.
Technical documentation describes Vladivostok as an area subject to intense winds, storms, and ice formation during winter.
According to engineers involved in publicly disclosed analyses, these characteristics influenced both the structural sizing and the planning of the work, affecting assembly procedures, operational safety, and execution timelines at height.
Aerodynamics, Thermal Expansion, and Maintenance
In this context, the aerodynamic behavior of the deck was treated as a critical variable.
In cable-stayed bridges, specialized publications indicate that the deck’s shape directly affects the wind response, potentially reducing transverse forces and limiting aeroelastic vibrations.
The need for stability under high winds, combined with wide thermal cycles, also guided decisions related to expansion joints, support devices, and inspection strategies throughout the structure’s lifespan.
Complementary Quantities and Industrial Effort
In addition to the steel used in the main span, technical bases indicate approximately 3,650 tons of steel associated with the cable system.
The pylons, for their part, concentrate about 41,419 m³ of concrete, in addition to the corresponding reinforcements.
These figures, disclosed in public engineering records, help to size the industrial effort involved, which includes manufacturing, transportation, assembly, and rigorous control of geometric tolerances.
Regional Integration and Infrastructure
The bridge’s implementation occurred during a period of infrastructure expansion in the Vladivostok region, aimed at improving connectivity with Russky Island.
Before the construction, access relied on maritime crossings and indirect routes.
With the completion of the bridge, the connection became permanent, integrating the island into the local road and urban system, according to official regional planning records.
Technical Use and Engineering References
From a technical perspective, the Russky Bridge is frequently used as a case study in engineering publications for its large span, intense climatic exposure, and structural solutions compatible with these constraints.
Industry experts point out that projects of this type require balance between stiffness, flexibility, and durability, factors that directly reflect in the amounts of steel, concrete, and the protection systems adopted.
