How Do Solar Panels Really Work? Operation, Types of Solar Cells, and Efficiency

Written by Bruno Teles

Published on 10/12/2023 at 01:21

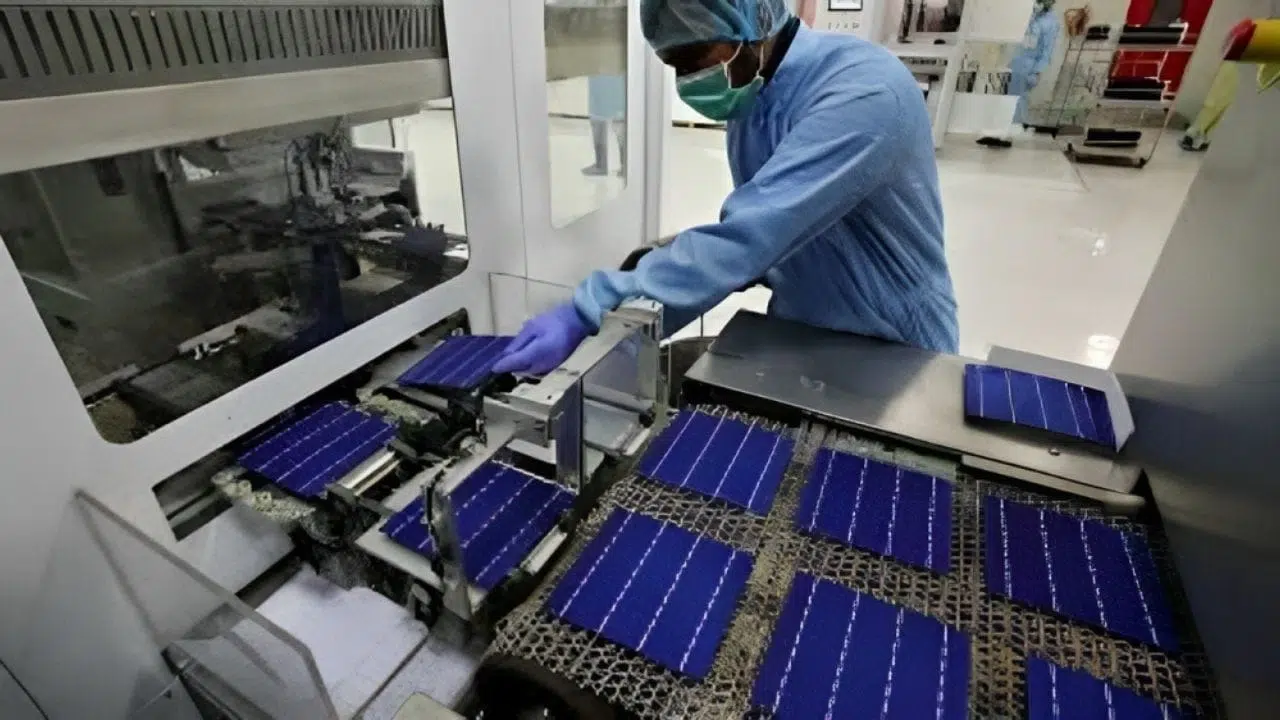

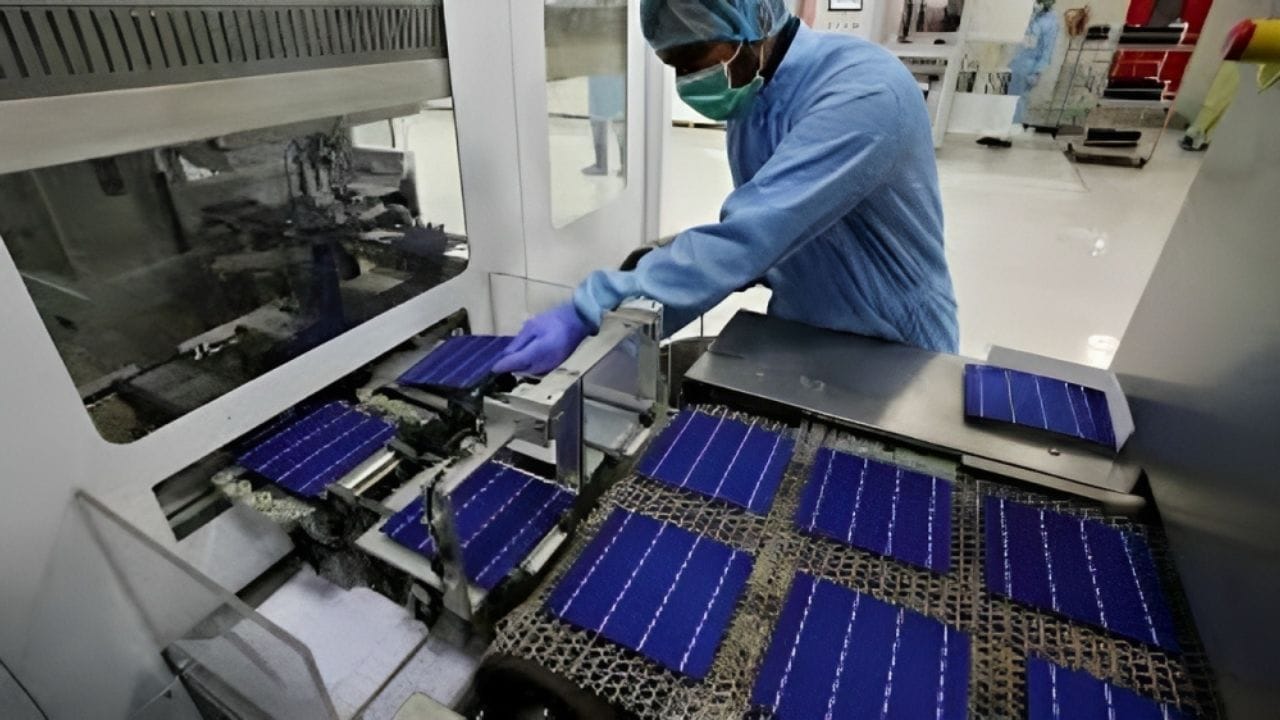

Placas solares:, uma revolução na geração de energia (Imagem / Divulgação)

Be the first to react!

Solar panels are an effective and sustainable solution for energy generation, with significant potential to transform the way we consume energy resources in the world.

Solar panels, also known as photovoltaic panels, represent an innovative technology for generating electrical energy from sunlight. This method of converting light into electricity is known as photovoltaic effect.

Basic Operation

Solar panels work by absorbing photons of light, which, upon hitting the solar cell, release electrons, creating an electric current. The intensity of the light directly influences the amount of electricity produced. Interestingly, if a solar cell is connected to a power source, it can emit infrared light, a phenomenon reverse to its normal operation.

A basic solar cell is composed of a conductive metal plate, layers of silicon (semiconductor material), an anti-reflective coating, and a metal grid. Each cell generates about 0.5 volts, but the current generated varies according to the size of the cell. The cells are connected in series to form a solar module, increasing the total voltage. Common residential solar modules have 60 or 72 cells, generating voltages suitable for grid-connected systems.

ARTICLE CONTINUES BELOW

Types of Solar Cells

There are different types of solar cells, such as polycrystalline cells, which are common in hobby electronics and solar panels due to their lower cost and efficiency of around 13 to 17%. Monocrystalline cells, which are more efficient (15 to 19%), are more expensive but offer better performance. There are also thin-film cells, flexible and less efficient, used in specific applications like curved roofs or vehicles.

The energy generated by solar panels is in direct current (DC), which can be used directly to power DC devices or stored in batteries for later use. For residential and commercial applications that require alternating current (AC), an inverter is used to convert energy from DC to AC.

https://www.youtube.com/watch?v=JTqz_xzozl0&ab_channel=BlueSolEnergiaSolar

Installation and Orientation: Efficiency of a Solar Panel

The efficiency of a solar panel significantly depends on its orientation and tilt in relation to the sun. Simulation tools, such as PVcase software, can help optimize the design and placement of panels to maximize solar exposure. According to G1, there are also various shapes of solar panels, and it is important to understand this to avoid compromising the roof.

Solar panels represent a clean and renewable energy source, contributing significantly to the reduction of greenhouse gas emissions. With advances in technology and decreasing costs, it is expected that solar energy will play an increasingly important role in the global energy mix.
