Discover The Real Function Of The Spheres In Power Lines And The Balls In Energy Cables. Understand What The Balls On The Light Wires Are For, An Essential Item For Safety And Accident Prevention
Have you noticed those red or orange spheres hanging on the power lines that cut across the cities’ skies? Many people think they are merely decorations or some sort of embellishment designed to make the cables more visible, with little function beyond that. However, this is a misguided idea. These spheres, which frequently appear on high-voltage power lines and energy cables, are important technical components. They serve to ensure safety, prevent accidents, and enhance the visibility of electrical wires, especially for aircraft operating in regions near airports and rural areas.
Today you will understand what the spheres on power lines are, what the balls on light wires are for, why they are installed on high-voltage cables, and the importance of this item that, despite being discreet, plays a fundamental role in public and operational safety of Brazil’s electrical system.
What Are The Spheres On Power Lines?

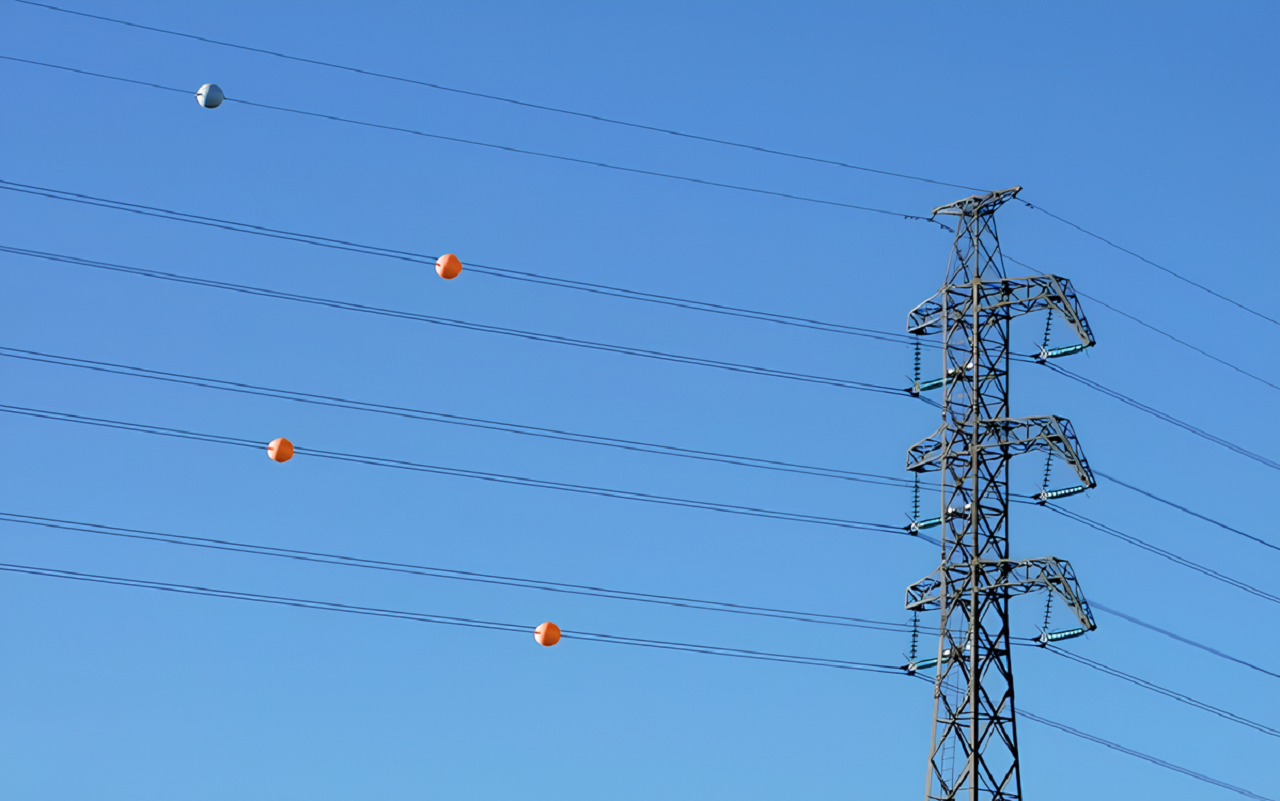

The red or orange spheres we see on power lines are technically called “obstruction markers” or “signaling spheres.” Made from durable plastic material, they are fixed directly to the suspended cables, mainly on electrical transmission lines.
-
The world consumes 50 billion tons of sand per year and no one is monitoring it: the UN warns that the second most used resource on the planet after water is running out and has even created an international mafia.
-
With a length of 211 meters, a double iron hull, and propulsion by sails, paddles, and a screw propeller simultaneously, the Great Eastern was the largest ship on the planet and ultimately laid the first successful transatlantic telegraph cable.
-
A truck driver spent 21 years building a 15-meter replica of New York using balsa wood, cardboard, and regular glue; the work, featuring hundreds of thousands of buildings, has become an attraction in a museum in the city itself.
-
More than 138 stone tools found on the seabed between Turkey and Europe reignite the hypothesis of a lost land bridge from the Ice Age that may have been used by humans to cross continents.
These balls on energy cables primarily function to make the wires more visible in the environment so that they are not confused with the sky, trees, or other objects. This is especially important during the day and in weather conditions that reduce visibility, such as fog and storms.
In addition to their vibrant color—usually fluorescent red or orange—the spheres are large enough to be seen from a good distance, both by humans on the ground and by pilots flying over the area.
What Are The Balls On Power Lines For?
The question “what are the balls on power lines for?” may seem simple, but the answer involves important technical and safety aspects. The spheres do not exist by chance. Their primary function is to prevent aerial accidents.
When transmission lines cross low flight paths, near airports, heliports, or rural areas where helicopters, agricultural planes, and drones frequently fly, the visibility of the cables can be a serious problem. Many of these cables are nearly invisible to the naked eye, increasing the risk of collisions.
Therefore, the balls on light wires act as beacons for pilots, alerting them to the presence of dangerous obstacles and allowing them to react in time to avoid accidents.
Additionally, they help identify the lines for maintenance crews and also for people on the ground, preventing accidents from accidental contact with the cables.
Why Are There Balls On High-Voltage Wires?
High-voltage lines are the backbone of the electrical system, transporting energy over long distances between power plants and consumer centers. Many of these lines cross open and isolated areas where there are no poles or infrastructure for support, being upheld by metal towers.
In these areas, the height of the cables can vary significantly and is often in a risky range for small aircraft. This is why signaling with balls on high-voltage wires is mandatory by regulations from the National Electric Energy Agency (ANEEL) and the National Civil Aviation Agency (ANAC).
This signaling has dual importance:
- Protection for Aircraft: prevents accidents from collisions with invisible cables, which can be fatal.
- Preservation of The Electrical Network: prevents impacts from damaging cables, which would cause interruptions in energy supply, affecting thousands of consumers.
Studies conducted by the Air Traffic Control Department (DECEA) indicate that the presence of spheres reduces the risk of accidents on flight paths near high-voltage lines by up to 80%.
How Do The Spheres On Power Lines Work?
The spheres are designed to withstand extreme weather conditions and wear caused by continuous exposure to sun, rain, wind, and temperature variations. They are made of high-resistance plastic and affixed to the cable in a way that does not compromise the electrical insulation.
The size of the balls varies, but they typically range between 30 cm and 60 cm in diameter—large enough to ensure good visibility, even from great distances.
They are installed at regular intervals, according to technical standards, to ensure that at any point along the route, the cable is visible to pilots and maintenance crews.
Importance of Signaling On Electrical Lines
Brazil has an extensive network of transmission lines—over 130,000 kilometers—that connect generation plants to urban and industrial centers. Ensuring safety on these lines is crucial for maintaining energy supply and protecting lives.
Signaling with spheres on power lines is a simple yet extremely efficient measure. It helps to:
- Avoid accidents with aircraft;
- Reduce economic losses from supply interruptions;
- Facilitate maintenance and inspection of the lines;
- Preserve the environment by preventing fires and damage caused by collisions.
Additionally, the visibility of the spheres is also important for agricultural equipment and machine operators in rural areas near the lines.
Where Are The Balls Installed On Energy Cables?
The spheres are installed especially in high-risk locations, such as:
- Near commercial and private airports;
- Regions with intense traffic from helicopters and agricultural aircraft;
- Rural areas where agricultural machines and drones operate at low altitude;
- Places where the lines cross valleys, rivers, or areas of difficult visibility.
The spacing between the spheres can vary depending on the height of the cable, type of line, and current technical standard. For example, for cables that are less than 60 meters high, the maximum distance between spheres can be 50 to 100 meters.
Difference Between Red And Orange Spheres On Electrical Cables
Although both red and orange spheres serve the same basic function, the color choice can vary according to local regulations and environmental conditions.
Red is more commonly used for high-voltage lines as it is a color that stands out better against the sky in different light conditions.
Fluorescent orange is an alternative used in specific areas as it offers high visibility during the day, especially in environments with dense vegetation or fog.
In some cases, yellow spheres or those with reflective elements may also be used to further enhance visual perception in different situations.
-
