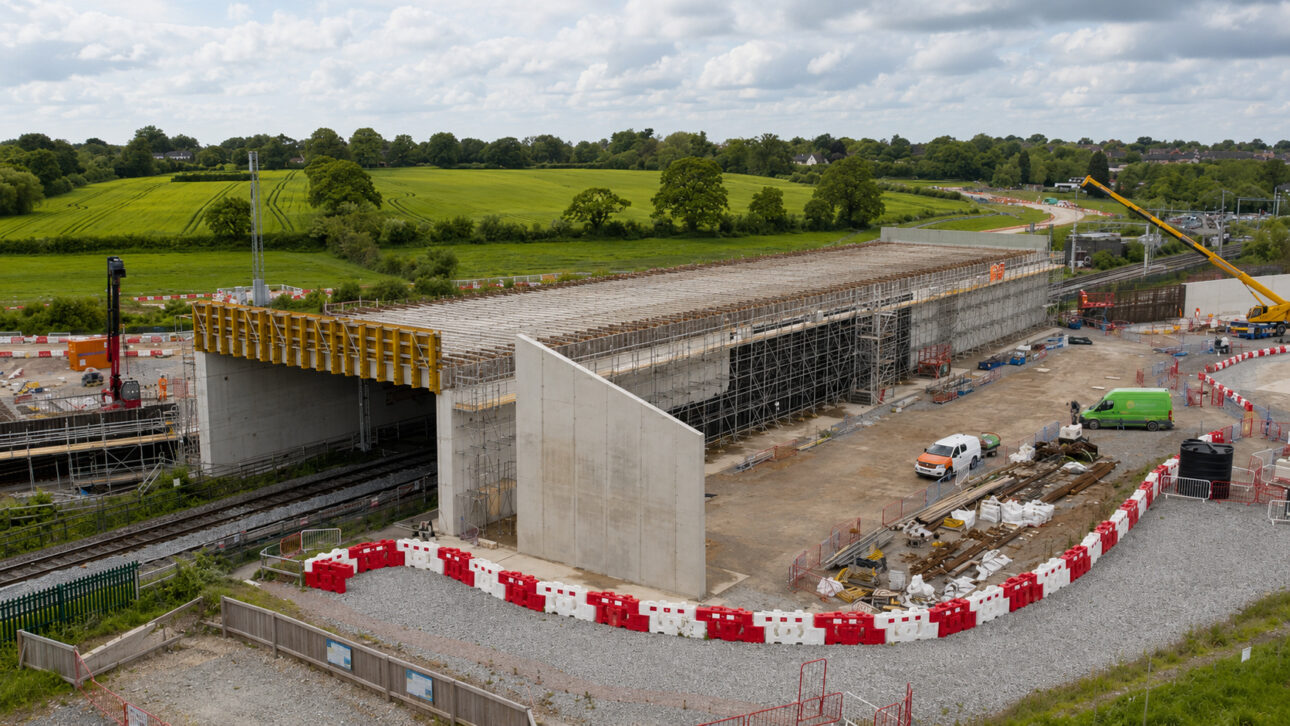

The new bridge over the West Coast Main Line advanced in Cumberland with 32 concrete beams, 60-ton external pieces, and a 700-ton Liebherr crane in a high-precision operation
The amount of 32 concrete beams were raised over the West Coast Main Line, in northern England, to form the structure of a new bridge in Cumberland, in May 2024.
The operation gained prominence due to the weight of the pieces, the importance of the railway, and the care required to assemble a bridge over a line essential to British transport. Most beams weigh about 30 tons, while the external beams reach 60 tons each.
The information was released by Cumberland Council, the local council of Cumberland. The work is part of the Carlisle Southern Link Road, a new road link planned for the region.
-
Man builds floating house for his family with around R$ 50,000, starts from a small workshop, constructs the hull from scratch, and transforms wood, epoxy, and planning into a dwelling on the water that looks like a modern architect’s project.
-
While traditional masonry can take months, the company sells a compact 45 m² dwelling that arrives ready on a truck, is installed on the site in less than a day, and already comes as a sturdy, finished house without conventional construction from scratch.
-
Russia pours 24 million tons of concrete to tame one of the world’s largest rivers, erect a 242-meter dam, and create a 300 km artificial lake with a reservoir of 31 billion m³ and 920-ton turbines.
-
Standing at 462 meters tall, the tallest tower in Europe withstands temperatures of -20 °C, was built on 264 giant piles, cost $2 billion, and uses 16,500 glass panels in a twisted structure.
Why the West Coast Main Line makes this work more delicate
The West Coast Main Line is not a common railway. It connects major regions of the United Kingdom and receives passenger and freight traffic.
Network Rail, British railway infrastructure company, classifies the route as the busiest mixed-use railway in Europe. This helps explain why any work over this line requires careful planning.
In a work of this type, the challenge is not only in the weight of the pieces. The most important point is to lift and position each beam without compromising the safety of the structure, the team, and the railway.
How 32 concrete beams form the base of the new bridge
The 32 concrete beams function as large support pieces. They are placed side by side to form the base of the bridge.
Most of the beams weigh about 30 tons. This weight already requires robust equipment, a prepared team, and control of each movement during the lifting.
Once the beams are positioned, they start to work together. In simple terms, these pieces help distribute the weight of the bridge and provide firmness to the structure that crosses the railway.
Why the External Beams Weigh 60 Tons
The external beams are located on the sides of the bridge. They play an important role because they help close and reinforce the structure.
In this project, each external beam weighs 60 tons. This means these pieces have approximately double the weight of most beams used in the assembly.
Due to this weight, the lifting needs to be done with great precision. The crane lifts the load, moves the piece in the air, and places everything in the correct spot of the construction.
700-Ton Liebherr Crane Was Used in the Assembly

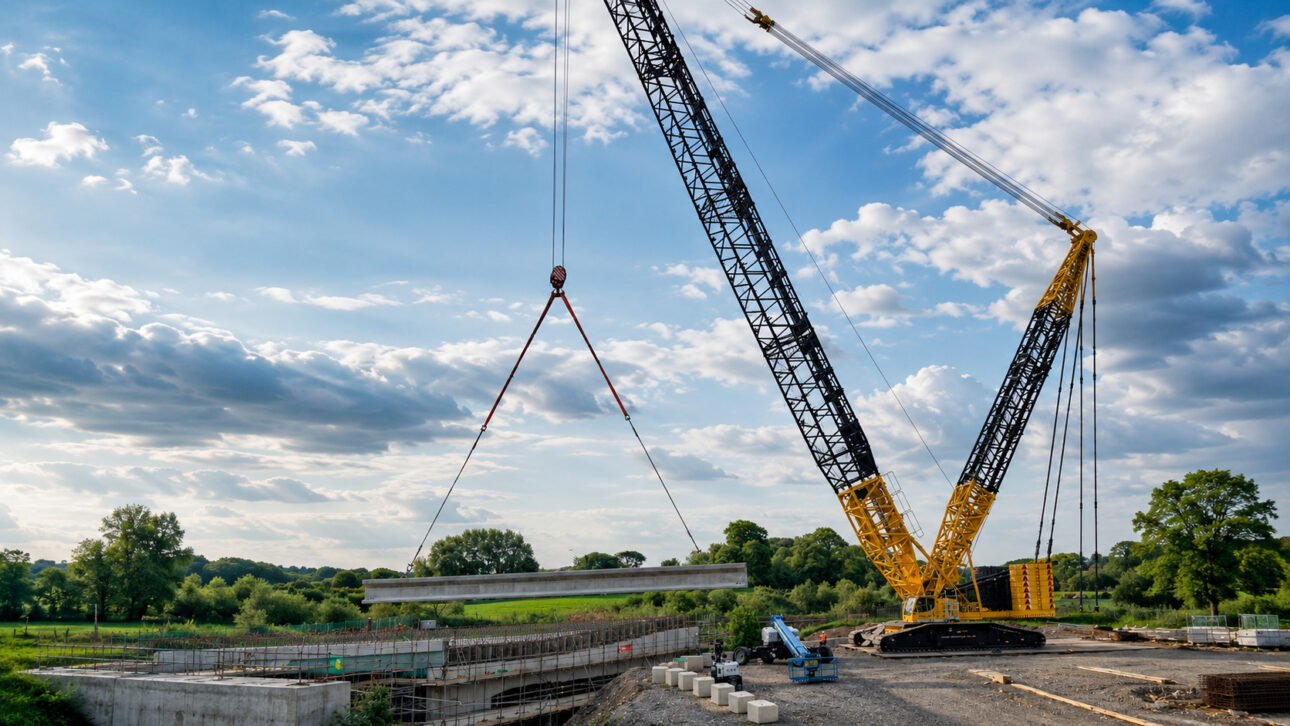

The installation involved a Liebherr crawler crane with a capacity of 700 tons. This type of equipment is used in heavy construction because it offers strength and stability.
The tracks function as a wide base on the ground. They help the crane stay stable during the movement of very large loads.
Cumberland Council, local council of Cumberland, recorded that the operation also involved work day and night over the two weekends prior to the official publication on May 23, 2024.
The Project Director’s Statement Reinforces the Scale of the Operation
Alan Bingham, project director of the Carlisle Southern Link Road, stated: “This achievement represents the collective planning, hard work, and exemplary teamwork of our supply chain.”
He also highlighted that the installation of the beams marked an important advancement in the construction of the new bridge over the West Coast Main Line.
The statement shows that the operation was not just a common construction phase. It was a decisive moment to transform concrete pieces into a real structure over a major railway.
What the Bridge Delivers When the Construction is Completed
The new bridge is part of the Carlisle Southern Link Road, a road link in Cumberland. The installation of the beams is one of the most visible phases of the construction.
There are still other stages until completion, but the base of the bridge took shape with the 32 concrete beams. This phase shows how infrastructure works depend on strength, sequence, and precision.
In the end, the central fact is simple: pieces weighing up to 60 tons were lifted over one of the most important railways in Europe to form a new bridge in the north of England.
